Product Overview

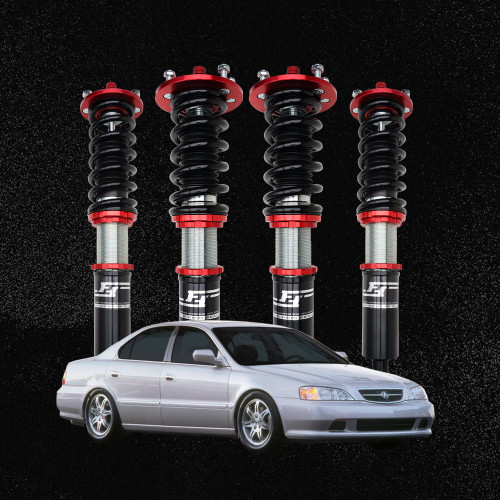

F2 Function & Form Acura TL UA6/UA7 04-08 Type 2 Coilovers Kit F2-TLT2
- Full-bodied coilovers
- Upper strut mounts included
- Variable damping matched with proper spring rates
- Cold-rolled Japanese steel springs
- Quick install preload ready
- Threaded body and lower mounts for ride height adjustments
Features:
The third generation Acura TL UA6 and UA7 first rolled off the assembly line on September 30th, 2003. The TL was powered by a 3.2 L 24 Valve SOHC Vtec V6 Engine at 258hp and 233 lb ft of torque and its successor is the Acura TLX.
Curb Weight 3,480 lbs
Wheelbase 107.9 in
Length 189.3 in
Width 72.2 in
Height 56.7
Full-bodied coilover: All Function and Form kits are full-bodied coilovers built for street performance and weekend track enthusiasts.
32-level adjustable damping: Function & Form Type 2 are the ultimate street inspired full-bodied coilovers with 32-levels of damping to provide the precise control when modifying ride quality and handling.
Steel Collars and Spring Perches for High Durability and Hardness: All Function and Form coilovers are built with corrosion resistant zinc plated steel collars, spring perches, and shock body. Steel is the prefered material for ensured durability and is harder than aluminum, performing better under weight, force, and heat.
Adjustable Lower Mount: All Function and Form coilovers feature a threaded shock body and adjustable lower mounts. Which allow for height adjustments from the lower mount without sacrificing the shock travel.
F2 Red Powder Coating: Signature red lower mounts are protected with an extremely strong and corrosion resistant powder coating technique. Function and Form lower mounts provide a durable barrier against all weather elements.
Pillowball Top Mount: Select applications for vehicles with McPherson style suspension will feature a pillowball top mount assembly.
Pillowball Top Mount: Select applications for vehicles with McPherson style suspension will feature a pillowball top mount assembly.
Mono-Tube Technology for Improved Handling at Low Shaft Speeds: Vehicle applications equipped with mono-tube damping design have larger cylinders and piston vales - operating more responsively and without any aeration or performance fade.
Shock Dust Boot: Polyurethane dust boots are specifically fitted to help keep out harmful road contaminants. Dust boots and bump stops are standard for all Function and Form coilovers.
Industry Leading 24-month Limited Warranty: At Function and Form we stand behind our products. All coilovers are covered under a 24-months limited warranty against manufacturer defect*.
Specification:
|
Damping
|
32 levels of damping. damping adjustments made with a knob that “clicks” at each level
|
|
Ride height
|
Adjustable separate of pre-load
|
|
Mounts
|
Steel lower mounts for maximum strength, top mounts included
|
|
Oil Lubrication
|
Special oil lubrication to withstand conditions from -40 degrees Celsius to 200 degrees Celsius
|
|
Shock Design
|
Dual tube shock design for maximum ride comfort
|
|
Double Wishbone Piston Size
|
43mm
|
|
MacPherson Strut Piston Size
|
50mm
|
|
Spring Rates
|
12k Front, 6k Rear
|
|
Warranty
|
2-Year Limited
|
|
Legacy SKU
|
F2-TLT2
|
